Nestable-Asset Journey ( Part 1, Kingdom )

Open in Remix

Click Open in Remix and you will be redirected to Remix with the contract already loaded, installing all the packages might take a few minutes. You should then see a screen like this.

Compile the contract

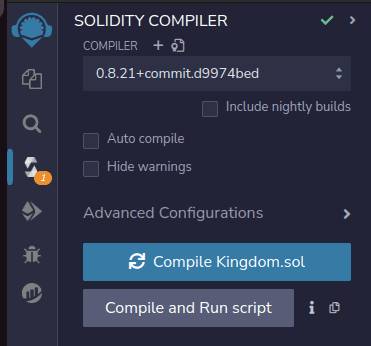

Hit Compile button and wait for it to process.

Configure the deployment

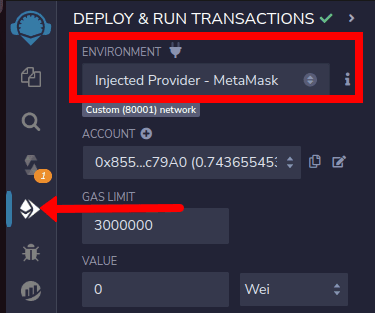

• Go to the Deploy section on the left.
• In the Environment dropdown, select Injected Provider to use your wallet to deploy the contract.

Fill in the deployment data

Expand the deploy section and fill in all the data.

• Collection Metadata: ipfs://QmQhDyuSvd49pxe5v2KnmvWT39TFyoqEQyBkhjYC7imHUs/kingdom/collection.json
• Max supply: 1000
• Royalty receipient: Your address
• Royalty percentage: 300 * This is 3% in Base Points.

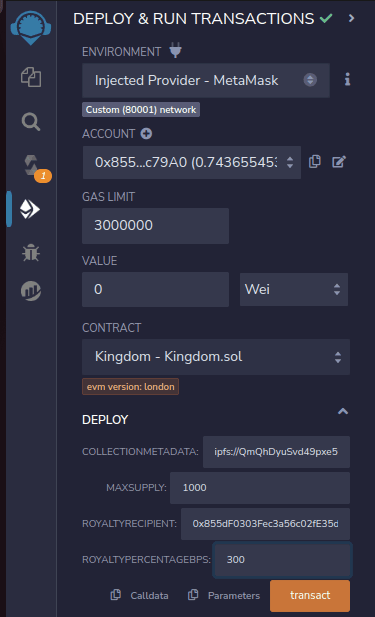

Your screen should look like this:

Deploy the contract

• Hit transact and confirm the transaction on your wallet.
• Your deployed contract will show on the Deployed Contracts section, where you can interact with it.

Prepare Army contract

Back to the wizard.rmrk.dev (opens in a new tab).

1. Set the name to "Army"
2. Set the symbol "ARM"
3. Select Module to be Nestable
4. Select Mint Method to Pre-Mint
5. Activate the Auto-accept children option, we will use it so soldiers are automatically accepted into the army.

Open in Remix and compile

Click Open in Remix and you will be redirected to Remix with the contract already loaded. Remix keeps data about your session so you should now have both contracts. You may rename them to make it easier to identify them.

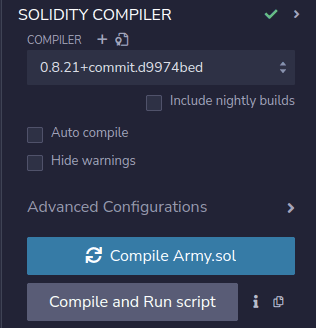

With the Army contract open, hit Compile button and wait for it to process.

Fill in the deployment data

• Go to the Deploy section on the left and expand the deploy section and fill in all the data.
  • Collection Metadata: ipfs://Qma8tB38iAiqFAJpwz55d7sRQx4q7zZq1gzXkkK9wjehCg/collection.json
  • Max supply: 1000
  • Royalty receipient: Your address
  • Royalty percentage: 300 * This is 3% in Base Points.

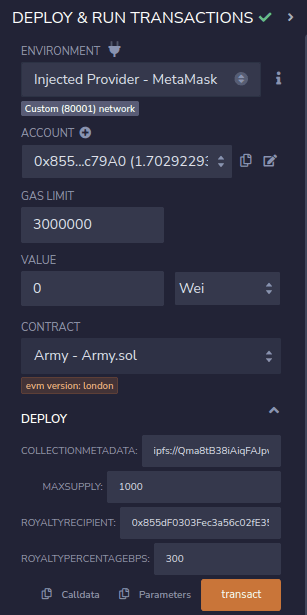

Your screen should look like this:

Deploy the contract

• Hit transact and confirm the transaction on your wallet.
• Your deployed contract will show on the Deployed Contracts section, where you can interact with it.

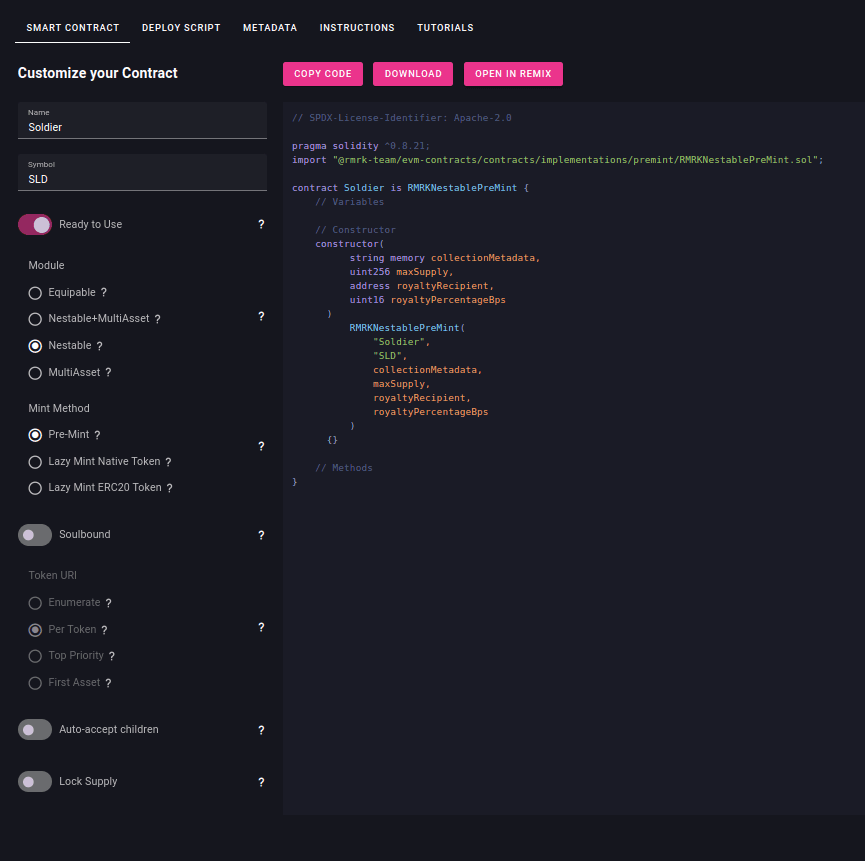

Prepare Soldier contract

Back to the wizard.rmrk.dev (opens in a new tab).

1. Set the name to "Soldier"
2. Set the symbol "SD"
3. Select Module to be Nestable
4. Select Mint Method to Pre-Mint
5. Disable the Auto-accept children option, we will not need it for this contract.

Open in Remix and compile

Click Open in Remix and you will be redirected to Remix with the contract already loaded. Remix keeps data about your session so you should now have the 3 contracts. Remember to rename the files to make it easier to identify them.

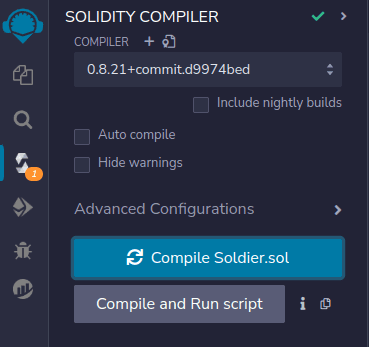

With the Soldiers contract open, hit Compile button and wait for it to process.

Fill in the deployment data

• Go to the Deploy section on the left and expand the deploy section and fill in all the data.
  • Collection Metadata: ipfs://QmQhDyuSvd49pxe5v2KnmvWT39TFyoqEQyBkhjYC7imHUs/soldiers/collection.json
  • Max supply: 1000
  • Royalty receipient: Your address
  • Royalty percentage: 300 * This is 3% in Base Points.

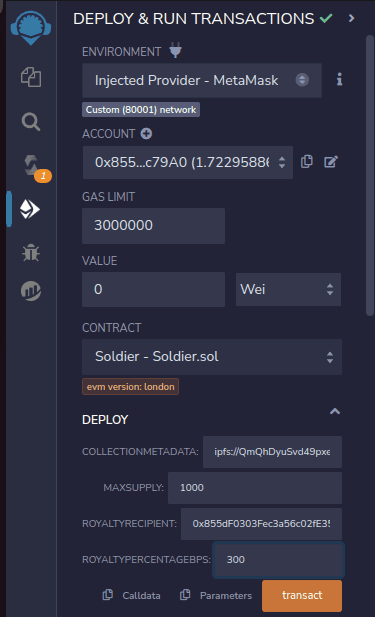

Your screen should look like this:

Deploy the contract

• Hit transact and confirm the transaction on your wallet.
• Your deployed contract will show on the Deployed Contracts section, where you can interact with it.

If all went well, you should see the 3 contracts under the Deployed contracts section:

Congratulations!

You have deployed your first Nestable contracts. For practical reasons we will be doing all the operations with the same account.

Prepare contract interaction scripts

We can do every step without further coding, by using the deployed contracts section on Remix, as we did on MultiAsset Journey. However, since there are several operations and some of involve reading the state and finding the children indexes, we will use a script to interact with the contracts.

• Create a run-journey.ts file under the scripts folder. We will start by importing some libraries and our method to get the contracts. All the code will run under the main function. We will simply log the account and the addresses of the kingdom and soldier contracts, to make sure they are as expected.

• Add the following code to the run-journey.ts file:

import {ethers} from 'ethers'
;(async function () {
    try {
        const kingdomMetadata = JSON.parse(
            await remix.call(
                'fileManager',
                'getFile',
                'browser/artifacts/Kingdom.json'
            )
        )
        const armyMetadata = JSON.parse(
            await remix.call(
                'fileManager',
                'getFile',
                'browser/artifacts/Army.json'
            )
        )
        const soldierMetadata = JSON.parse(
            await remix.call(
                'fileManager',
                'getFile',
                'browser/artifacts/Soldier.json'
            )
        )

        const wizard = new ethers.providers.Web3Provider(
            web3Provider
        ).getSigner()

        // Create an instance of a Contract Factory
        const kingdomFactory = new ethers.ContractFactory(
            kingdomMetadata.abi,
            kingdomMetadata.data.bytecode.object,
            wizard
        )
        const kingdom = kingdomFactory.attach(
            '0xAC2D51fE04853eD784282744167c9568C065708E'
        )

        const armyFactory = new ethers.ContractFactory(
            armyMetadata.abi,
            armyMetadata.data.bytecode.object,
            wizard
        )
        const army = armyFactory.attach(
            '0x735C40D5C71A9024AAFf1F667551Def02C549FaC'
        )

        const soldierFactory = new ethers.ContractFactory(
            soldierMetadata.abi,
            soldierMetadata.data.bytecode.object,
            wizard
        )
        const soldier = soldierFactory.attach(
            '0x3FaA4C4824790a48c67888cc54FfE5b3C729f870'
        )

        const wizardAddress = await wizard.getAddress()
        console.log(`Running journey with account: ${wizardAddress}`)
        console.log(`Using Kingdom deployed at ${kingdom.address}`)
        console.log(`Using Army deployed at ${army.address}`)
        console.log(`Using Soldier deployed at ${soldier.address}`)

        // Journey starts here:
    } catch (e) {
        console.log(e.message)
    }
})()

Run the script

You can safely run the script since there will be no interactions. It will use the account you connected to deploy your contracts. From the File Explorer, right click on the script and hit Run.You should see a similar output:

Running journey with account: 0x855dF0303Fec3a56c02fE35d8fb4d5e80A8c79A0
Using Kingdom deployed at 0x410EeA6EF48bA0f54F925BC01665D732203E57Ad
Using Army deployed at 0x6dE36644b5B73106c99C43a2669ae93b5d37b677
Using Soldier deployed at 0xE7dBc708fC483882c88bb0f86628f90Ef6A06117
